PLANT REPORT

Dewatered Sludge Storage Facility TERMENO 1216

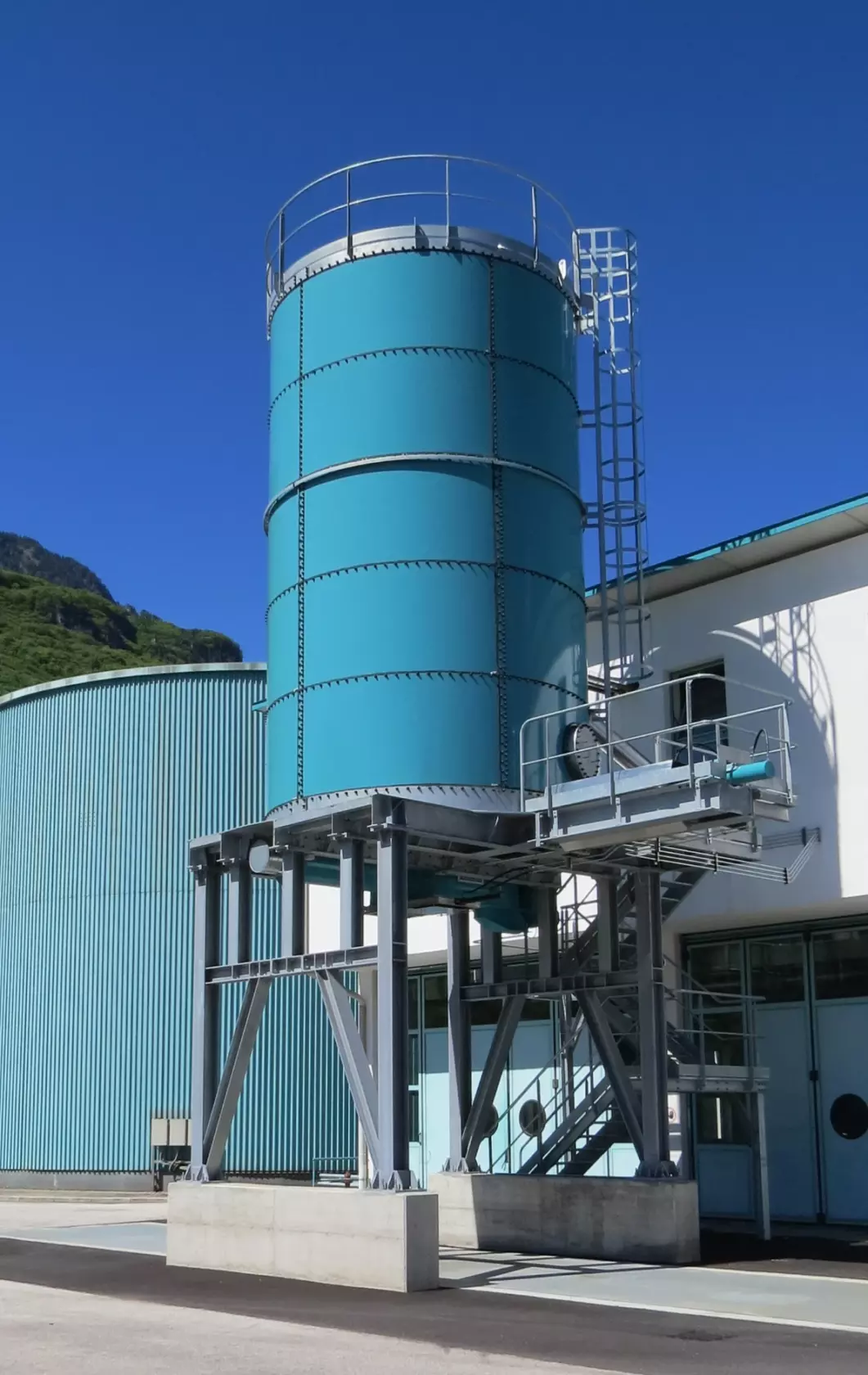

During the modernization of the Termeno wastewater treatment plant in 2015, a silo was built for the storage of dewatered sludge, making the sludge loading process onto transport vehicles more efficient and cost-effective. The 100 m³ capacity silo is loaded via a progressive cavity pump and pipeline. The silo is equipped with the well-proven sliding frame system with an extraction screw conveyor. Accessibility to the silo is provided by a walkway up to the extractor level and a ship ladder to the roof.

Technical Data:

• Year of construction: 2015
• Material: Dewatered sludge
• Specific weight: 1,100 kg/m³
• Dry solids content (DS): 20 – 35%
• Storage silo with sliding frame extraction system
• Capacity: 100 m³
• Amount of sludge treated: 3,000 t/a
• Extraction capacity: > 100 m³/h onto trucks (DM)
